XCMG official GR2405 250HP China mining motor grader price

$10000.00-$1000000.00 1 / EA (Min. Order)
Model: GR2405
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG official GR2405 250HP China mining motor grader price

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

Specifications

  • Weight:16700.000kg
  • Rated power/speed:178/2200kW/rpm
  • Traction force (f=0.75):88kN
  • Min.turing radius:7.3m
  • Moldboard width×height:3965×610mm
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China
  • Certification:CE/ISO9001

XCMG official GR2405 250HP China mining motor grader price

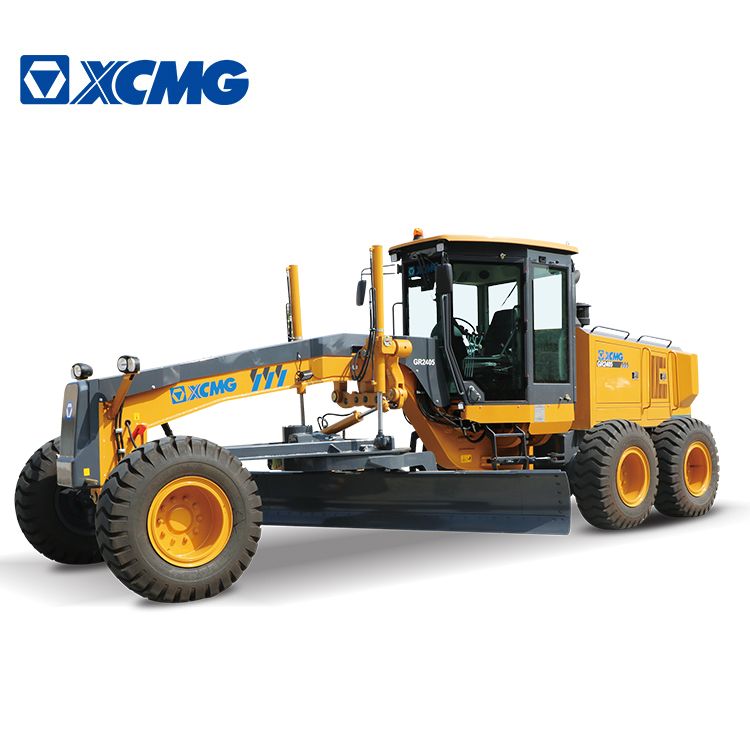

XCMG official GR2405 250HP China mining motor grader.

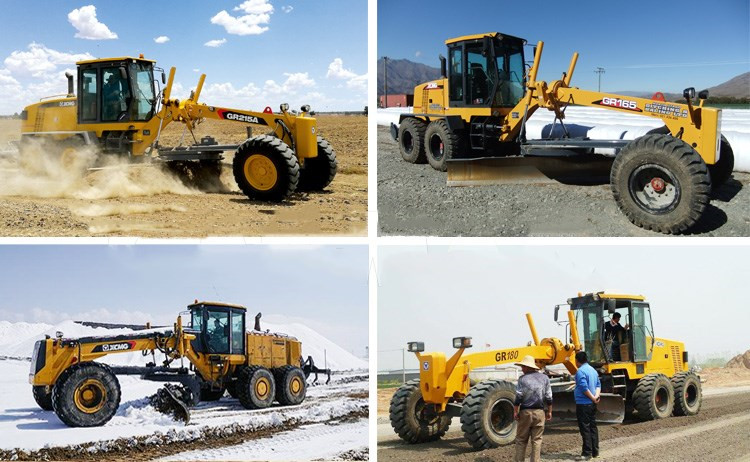

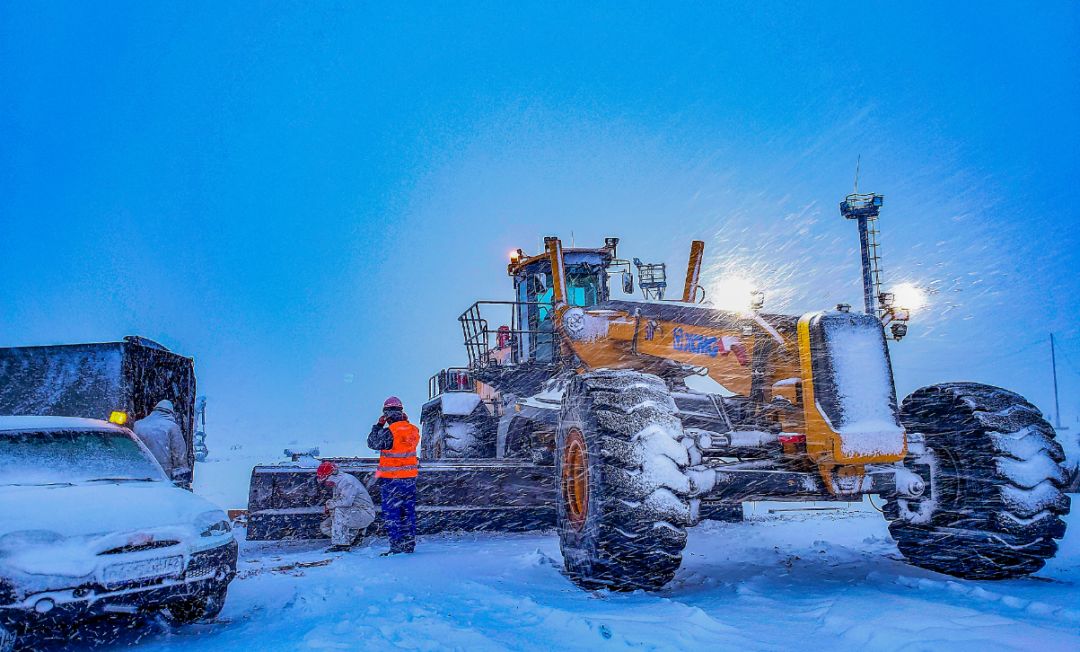

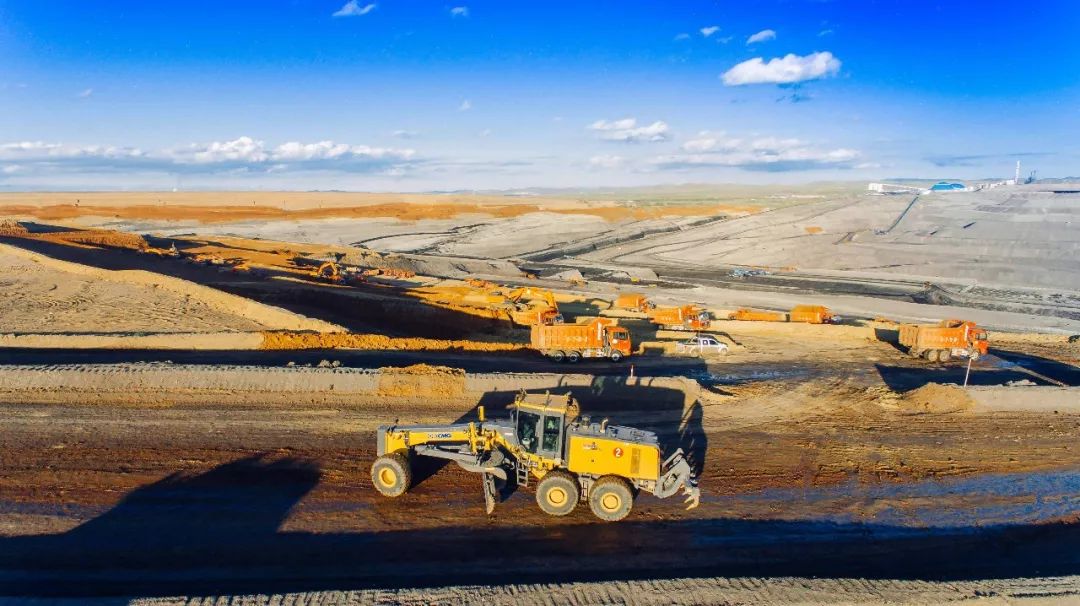

The mining motor grader GR2405 is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.



1. Utilizing load sensitive hydraulic system, small control force, good control feeling, realizing micro control.



2. Engine variable power control technology, more energy efficient.



3. Intelligent fan control technology enables fan speed changing with the real-time detected system temperature, low energy consumption and low noise.



4. Wet type brake axle, long lifetime, higher reliability.



5. Elevated cabin allows bigger operation space.



6. The working device is more reliable with the integral angle position device, high strength rotary support and overload protection worm gearbox.

XCMG official GR2405 250HP China mining motor grader price

Item

Unit

GR2405

Basic parameters

Engine model



QSB6.7

Rated power/speed

kW/rpm

178/2200

Overall dimension(standard)

mm

9300 x 2625 x 3470

Total weight(standard)

kg

17000

Tire specification



17.5-25

Ground clearance

mm

586

Tread

mm

2156

Space of front and rear axles

mm

6447

Space of middle and rear wheels

mm

1538

Performance parameters

Forward velocity

km/h

5811182540

Reverse speed

km/h

51125

Tractive effort f=0.75

kN

≥88

Maximum gradeadbility

%

≥25

Inflation pressure of tires

kPa

260

Working system pressure

MPa

22

Transmission pressure

MPa

1.85-2.2

Working parameters

Maximum steering angle of front wheels

°

±48

Maximum inclination angle of front wheels

°

±17

Maximum swing angle of front axle

°

±15

Maximum swing angle of balance box

°

front 15, rear 15

Maximum steering angle of frame

°

±25

Maximum turning radius

m

7.3

Blade

Maximum lifting height

mm

480

Maximum shoveling depth

mm

715

Maximum lateral inclination angle

°

90

Cutting angle

°

29-69

Oil filling amount

Slewing angle

°

360

Length x chord height

mm

3965 x 610

Coolant

L

50

Fuel tank

L

270

Engine

L

24

Transmission

L

38

Balance box

L

60

Drive axle

L

36

Hydraulic oil

L

190
