XCMG Official Motor Grader GR215A VII For Sale

  • XCMG Official Motor Grader GR215A VII For Sale

Share:
XCMG Official Motor Grader GR215A VII For Sale
FOB for Road Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping
Payment Terms:
XCMG Official Motor Grader GR215A VII For Sale
  • Summary
  • Details
Summary
  • Weight:16100kg
  • Dimension(L*W*H):9180 x 2625 x 3420mm
  • Power(W):160kW
  • Model Number:GR215A VII
  • Brand Name:XCMG
  • Place of Origin:China
Details
  • Product Name:G5E5DCC0C7FC63
  • Display online time:2020-03-03
  • weight:1.000kg
  • After-sales Service Provided:Overseas service center available
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:other


XCMG Official Motor Grader GR215A VII For Sale


XCMG Official Motor Grader GR215A VII For SaleXCMG Official Motor Grader GR215A VII For Sale



Item

Unit

GR215A VII

Basic parameters

Engine model



6CTA8.3-C215

Rated power/speed

kW/rpm

160/2200

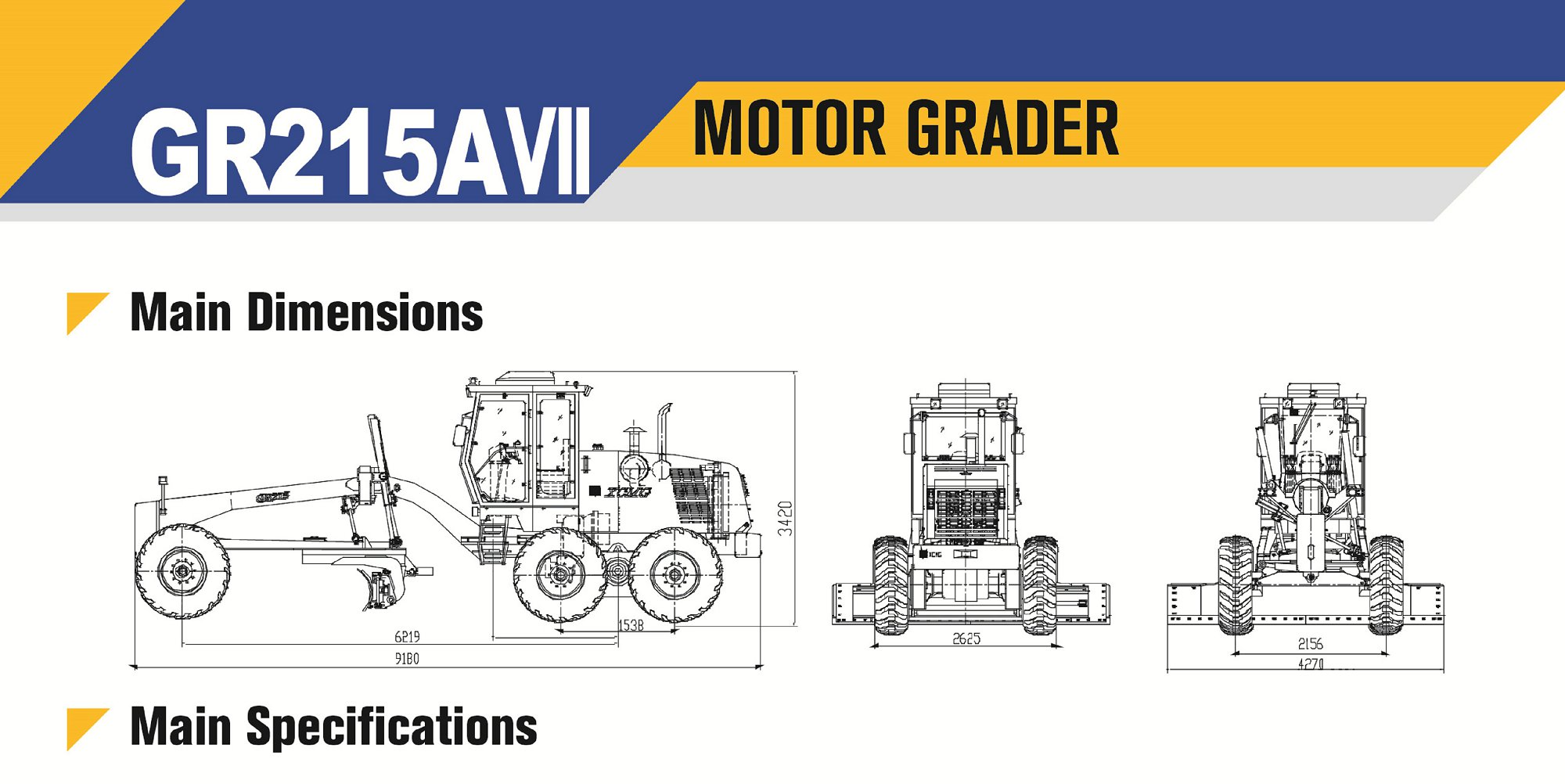

Overall dimension(standard)

mm

9180 x 2625 x 3420

Total weight(standard)

kg

16100

Tire specification



17.5-25

Ground clearance

mm

430

Tread

mm

2156

Space of front and rear axles

mm

6219

Space of middle and rear wheels

mm

1538

Performance parameters

Forward velocity

km/h

5811192338

Reverse speed

km/h

51123

Tractive effort f=0.75

kN

118

Maximum gradeadbility

%

30

Inflation pressure of tires

kPa

260

Working system pressure

MPa

18

Transmission pressure

MPa

1.3-1.8

Working parameters

Maximum steering angle of front wheels

°

±50

Maximum inclination angle of front wheels

°

±17

Maximum swing angle of front axle

°

±15

Maximum swing angle of balance box

°

front 15back 15

Maximum steering angle of frame

°

±27

Maximum turning radius

m

7.3

Blade

Maximum lifting height

mm

450

Maximum shoveling depth

mm

500

Maximum lateral inclination angle

°

90

Cutting angle

°

28-70

Oil filling amount

Slewing angle

°

360

Length x chord height

mm

4270 x 610

Coolant

L

50

Fuel tank

L

280

Engine

L

24

Transmission

L

38

Balance box

L

46

Drive axle

L

28

Hydraulic oil

L

220



XCMG Official Motor Grader GR215A VII For SaleXCMG Official Motor Grader GR215A VII For SaleXCMG Official Motor Grader GR215A VII For Sale
