- Model Number:XS163J
- Brand Name:XCMG
- Place of Origin:China
- Grade Ability:30%
- Travel Speed:11.17km/h
- Type:Vibratory Roller
- Product Name:G5F89151BE89BF
- Display online time:2021-03-04
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Moving Type:other

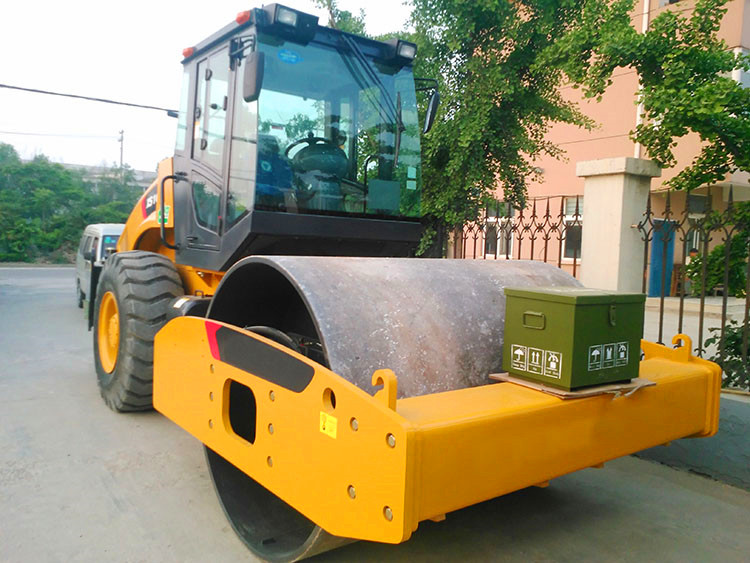

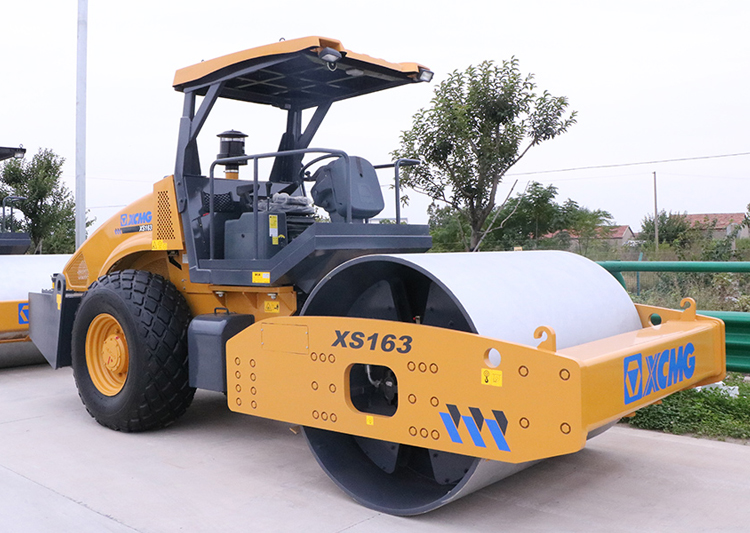

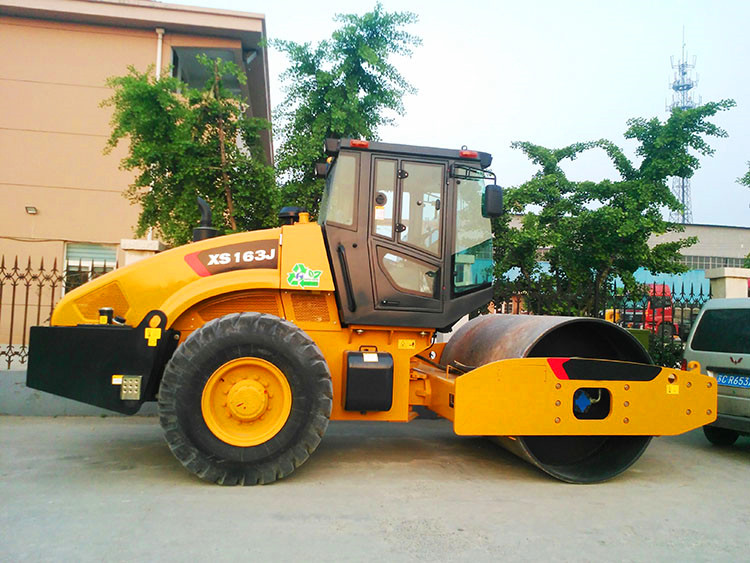

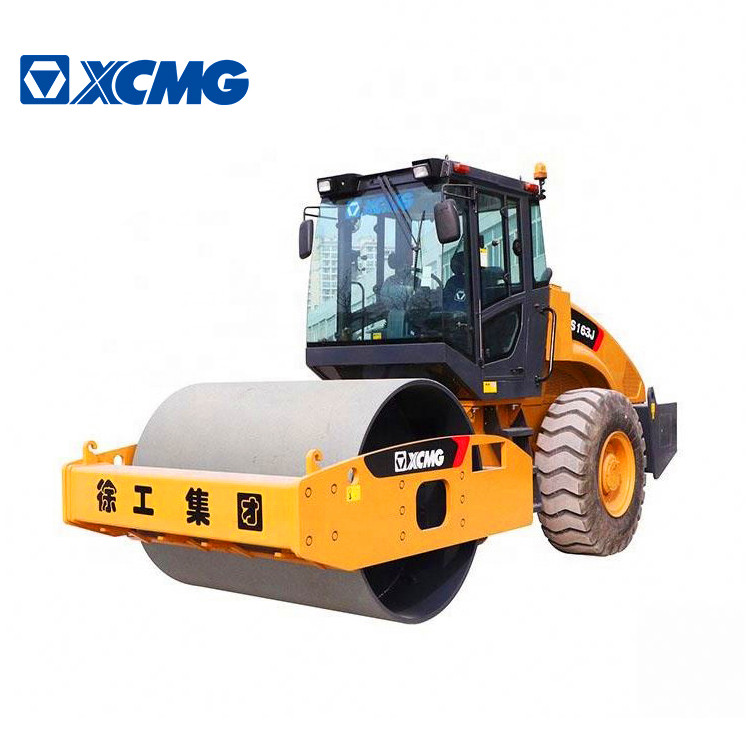

XCMG Official 16 ton vibratory road roller XS163J single drum road roller machine.
XS163J single drum vibratory roller has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc. and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects; Thus, it is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.
1. Use the H-series, water cooling, four-cylinder four-stroke, direct injection turbo charged and air-air intercooling low-speed diesel engine manufactured by Shanghai.
2. Rear drum hydraulic drive, adopt closed hydraulic drive system composed of variable displacement piston pump and piston motor to ensure better drive performance and gradeability.
3. Use the mechanical gear box with synchro mesh unit to realize convenient operation.
4. Main clutch uses the heavy-duty special clutch which is the dry type normally combined friction clutch with a reliable performance and good maintainability.
5. Double frequency and double amplitude can meet the requirements of different working conditions; hydraulic vibration system consists of gear pump and motor to form an open system; its control mode is electronic control.
Distributed mass of driving wheel
Distributed mass of vibration wheel
Static line load
Range of speed
Minimum turn radius
Diameter of vibration wheel
Minimum ground clearance
Overall dimension (length x width x height)
