Gaodetec GDS1500E electric shotcrete pump for building dome
GDS1500E
Specs & Compare
Details
Select 3 models for comparison
Certification
Dimension(L*W*H)
Weight
Power(W)
Voltage
Model Number
Brand Name
Place of Origin
Air Consumption
Hose Inner Diameter
Max Aggregate Size
Max. Conveying Distance
Engineering & Construction Machinery
GDS1500E
CE
1900x850x1250mm
610kg
5.5KW
electric
GDS1500E
Gaodetec
China
3m3/min
38mm
10mm
Vertical: 15m (Chinese hose)/30m (Trelleborg hose); Horizontal: 40m (Chinese hose)/80m (Trelleborg hose)
+ Add a Product
+ Add a Product
Summary
- Certification:CE
- Dimension(L*W*H):1900x850x1250mm
- Weight:610kg
- Power(W):5.5KW
- Voltage:electric
- Model Number:GDS1500E
- Brand Name:Gaodetec
- Place of Origin:China
- Air Consumption:3m3/min
- Hose Inner Diameter:38mm
- Max Aggregate Size:10mm
- Max. Conveying Distance:Vertical: 15m (Chinese hose)/30m (Trelleborg hose); Horizontal: 40m (Chinese hose)/80m (Trelleborg hose)
Specifications
- Weight:610.000kg
- Condition:New
- Moving Type:Other
- output:1.5-3m3/h
- Pressure:1.5Mpa (Chinese sequeeze hose), 3Mpa (Trelleborg hose)
- Max. Aggregate Size:10mm
- The squeeze hose:50mm
- Conveying hose:38mm
- Squeeze pump:GH50-455
- Power:5.5KW
- Hopper Capacity:200L
- Oil tank:120 Liter
- Requested air compressor:3m3/min, 0.5Mpa
- Vertical Conveying Distance:15m (Chinese hose)/30m (Trelleborg hose)
- Horizontal Conveying Distance:40m (Chinese hose)/80m (Trelleborg hose)
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Product Description

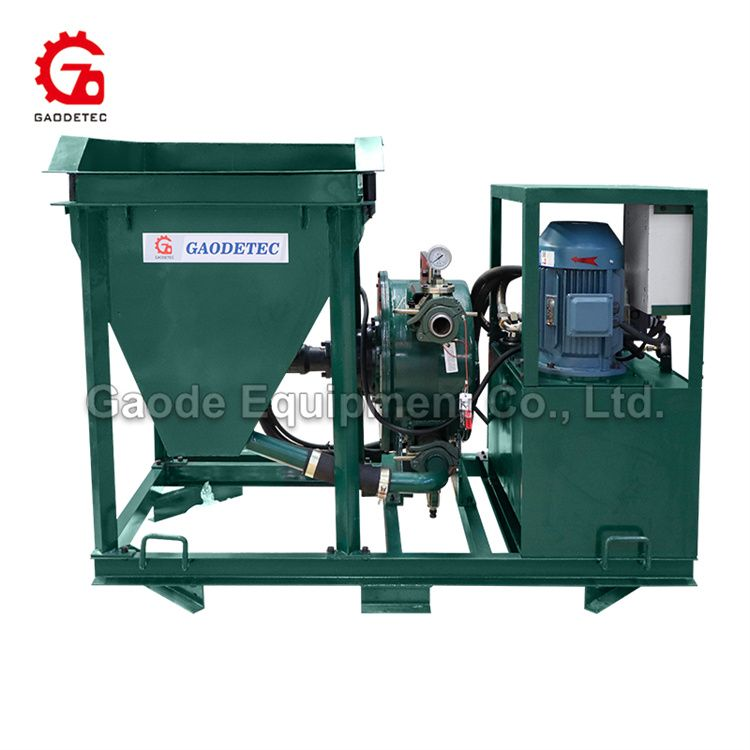

GDS1500E concrete spraying pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel.
GDS1500E concrete spraying pump is used for building dome, swimming pool etc. and pumping and spraying normal concrete, mortar, plaster and cellular light concrete.
Feature:
1. Planetary gearbox, highly reliable direct drive.
2. Skid mounted, transportable on a trailer.
3. Easily operation on work site.
4. Infinite speed variation.
5. Power, compact and reliable.
Technical Parameter
Image Display
Contact Us
Contact us for catalog and price of shotcrete machine
In order to confirm which type shotcrete machine suitable for your job, could you please help us to confirm the following information:
1. What's the project you will use the machine do, for slope protect or swimming pool or other?
2. Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?
3. What's the output you need, 3m3/h, 5m3/h, 7m3/h, 9m3/h, 10m3/h or other?
4. What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?
5. About the engine, do you need air motor, electric or diesel? What voltage it is on your local? It is 3 phase 380V 50Hz in China.
