XCMG original manufacturer rough terrain crane 25t RT25 price

  • XCMG original manufacturer rough terrain crane 25t RT25 price
  • XCMG original manufacturer rough terrain crane 25t RT25 price
  • XCMG original manufacturer rough terrain crane 25t RT25 price
  • XCMG original manufacturer rough terrain crane 25t RT25 price
  • XCMG original manufacturer rough terrain crane 25t RT25 price
  • XCMG original manufacturer rough terrain crane 25t RT25 price

Share:
XCMG original manufacturer rough terrain crane 25t RT25 price
FOB for Cranes Reference Price:Get Latest Price
$10000.00-$120000.00 1 / EA (Min. Order)
Model: RT25
Engine: Cummins
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG original manufacturer rough terrain crane 25t RT25 price
XCMG original manufacturer rough terrain crane 25t RT25 price
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
  • Model Number:RT25
  • Brand Name:XCMG
  • Place of Origin:Xuzhou,Jiangsu,China
  • Span:2.25~10m
  • Max. Lifting Height:44m
  • Max. Lifting Load:25ton
  • Rated Lifting Moment:989kN.m
  • Rated Loading Capacity:25ton
  • Application:Construction
  • Certification:CE/ISO9001
Specifications
  • weight:26365.000kg
  • Condition:New
  • Moving Type:Wheel
  • Engine rated power:142kW/(r/min)
  • Engine rated torque:616N.m/(r/min)
  • Max. travel speed:50km/h
  • Min. turning diameter:10m
  • Min. ground clearance:345mm
  • Overall dimension:11703*2700*3385mm

XCMG original manufacturer rough terrain crane 25t RT25 price

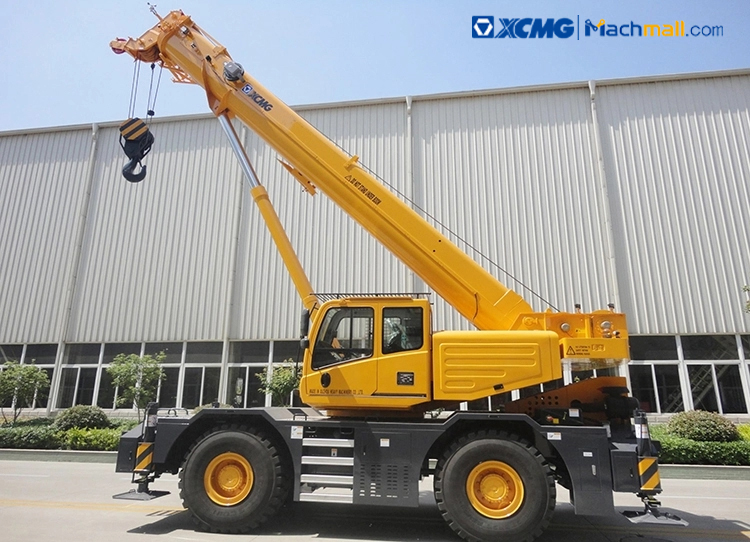

XCMG original manufacturer rough terrain crane 25t RT25.



XCMG rough terrain crane RT25 is equipped with the two-axle loading chassis, which has two types of drive modes, four types of steering modes and backward-forward driving functions.



Rough terrain crane RT25 also has four sections of dodecagon main booms, Jib stowed under boom, H type outrigger, fixed balance counterweight, as well as three working modes, including: hoisting with the support of outriggers, hoisting with the support of tire and hoisting when driving.

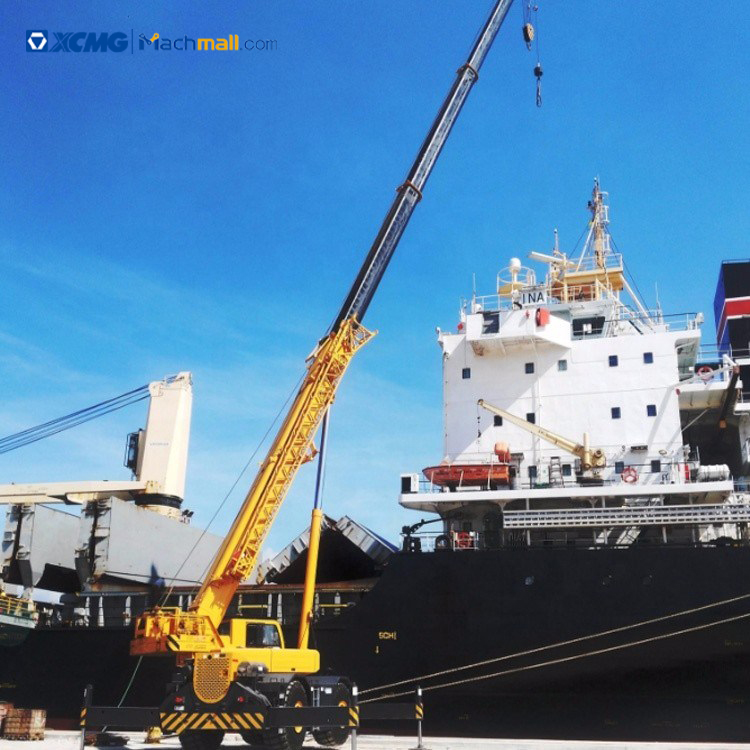

XCMG rough terrain crane RT25 is widely used in oil field, mine, road and bridge construction, warehousing base and other construction sites.



Performance Characteristics:



1. High mobility and efficiency



* Two driving types of 4×2 and 4×4 are adopted with forwards and backwards driving function.

* Four steering modes are adopted, and the min. turning radius is 5.0m with better job site adaptability.

* Due to powerful power configuration, specific off-road tires and all-wheel drive, XCMG rough terrain crane RT25 can easily handle various tough terrains.



2. Powerful lifting capacity



* Single-cylinder plus ropes telescoping system, stable and reliable.

* 4-section boom of 31m and jib of 13m with wide operation range.



3. Energy-saving and environmental-friendly



* The torque converter with lockout function has features of large torque at low speeds and high efficiency at high speeds.

* Elevating control system for freefall, without additional power needed.



4. High safety



Dedicated traveling safety protection system is adopted, and automatic warning, speed-limiting and braking with improved active driving safety.

XCMG original manufacturer rough terrain crane 25t RT25 price

Dimension
Unit
RT25
Overall length
mm
11703
Overall width
mm
2700
Overall height
mm
3385
Weight
Total weight in travel
kg
26365
Power
Engine model

QSB6.7-C190
Engine rated power
kW/(r/min)
142
Engine rated torque
N.m/(r/min)
616
Travel
Max. travel speed
km/h
50
Min. turning diameter
m
10
Min. ground clearance
mm
345
Approach angle
°
22
Departure angle
°
19
Max. grade ability
%
55
Fuel consumption for 100km
L
-
Main performance
Max. rated total lifting capacity
t
25
Min. rated working radius
m
3
Turning radius at turntable tail
m
3.698
Max. lifting torque
kN.m
989.8
Full-extend boom
m
9.1
Full-extend boom+jib
m
30.8
Boom length
m
41.4
