After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG Official Motor Grader GR230DⅢ For Sale

Content:

Or choose from these questions:
What is the best price you can offer?
Do you support customization?
What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

Specs & Compare
Details
Specs & Compare
Select 3 models for comparison
Weight
Dimension(L*W*H)
Power(W)
Model Number
Brand Name
Place of Origin
Grade Ability
Travel Speed
Static Linear Pressure
Type
Certification
Engineering & Construction Machinery
17000kg
8970 x 2625 x 3420mm
172kW
GR230DⅢ
XCMG
China
--
--
--
--
--
+   Add a Product
+   Add a Product

Summary

  • Weight:17000kg
  • Dimension(L*W*H):8970 x 2625 x 3420mm
  • Power(W):172kW
  • Model Number:GR230DⅢ
  • Brand Name:XCMG
  • Place of Origin:China

Specifications

  • weight:1.000kg
  • Condition:New
  • Moving Type:Other

Packaging & Shipping

  • Delivery Lead Time:7 days for ready goods
  • Minimum Order:1 Piece
  • Supply Ability:10,000 Set/ Sets per Month
  • Total Quantity In Stock:Over 5000
  • Delivery Port:Any Port In China


XCMG Official Motor Grader GR230DⅢ For Sale


XCMG Official Motor Grader GR230DⅢ For SaleXCMG Official Motor Grader GR230DⅢ For Sale

Item

Unit

GR230D III

Basic parameters

Engine model

6CTA8.3-C230

Rated power/speed

kW/rpm

172/2200

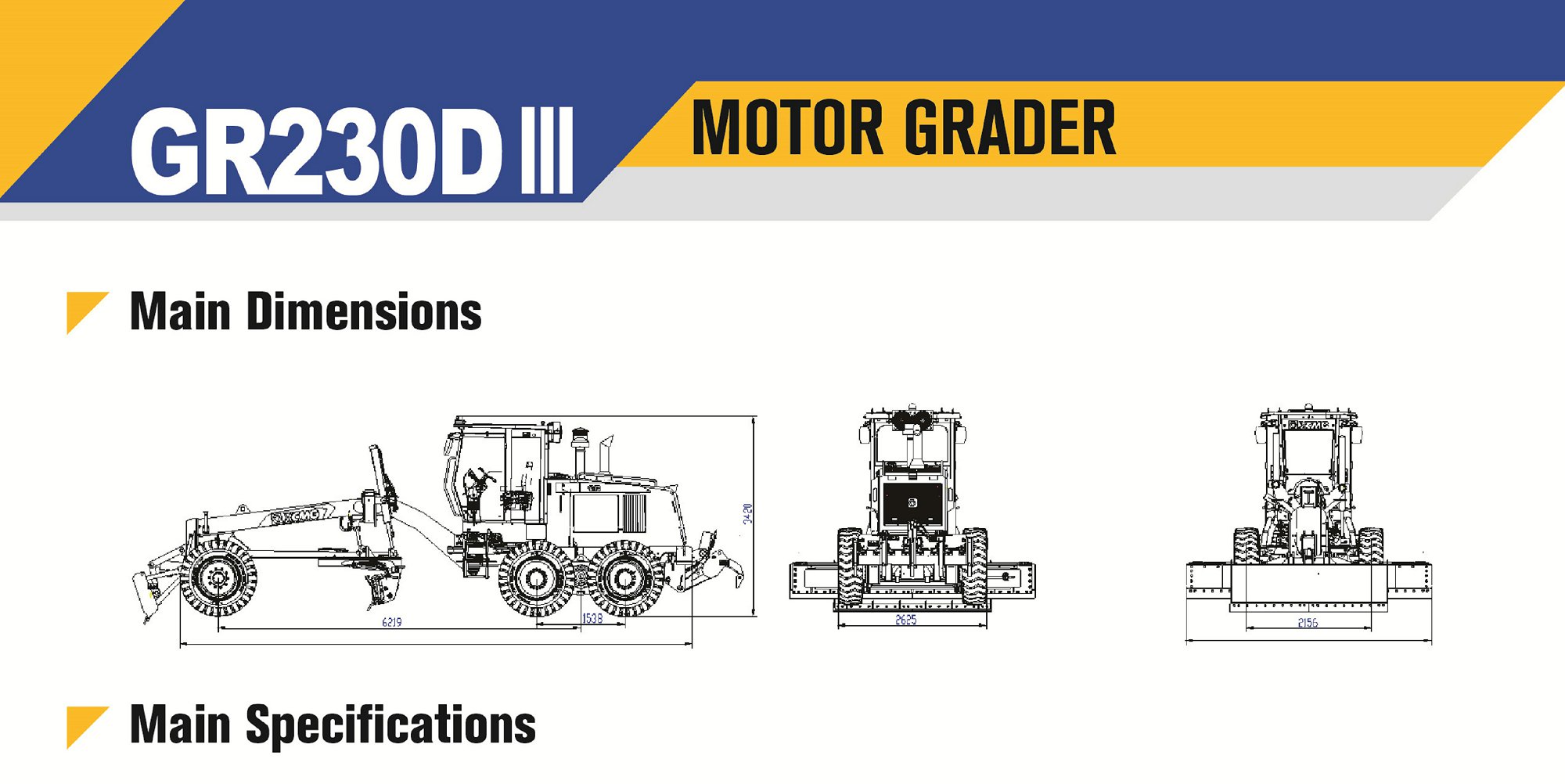

Overall dimension(standard)

mm

8970 x 2625 x 3420

Total weight(standard)

kg

17000

Tire specification

17.5-25

Ground clearance

mm

430

Tread

mm

2156

Space of front and rear axles

mm

6219

Space of middle and rear wheels

mm

1538

Performance parameters

Forward velocity

km/h

5811192338

Reverse speed

km/h

51123

Tractive effort f=0.75

kN

87

Maximum gradeadbility

%

25

Inflation pressure of tires

kPa

260

Working system pressure

MPa

16

Transmission pressure

MPa

1.3-1.8

Working parameters

Maximum steering angle of front wheels

°

±50

Maximum inclination angle of front wheels

°

±17

Maximum swing angle of front axle

°

±15

Maximum swing angle of balance box

°

front 15back 15

Maximum steering angle of frame

°

±27

Maximum turning radius

m

7.3

Blade

Maximum lifting height

mm

450

Maximum shoveling depth

mm

500

Maximum lateral inclination angle

°

90

Cutting angle

°

28-70

Oil filling amount

Slewing angle

°

360

Length x chord height

mm

3965 x 610

Coolant

L

50

Fuel tank

L

280

Engine

L

24

Transmission

L

38

Balance box

L

46

Drive axle

L

28

Hydraulic oil

L

110


XCMG Official Motor Grader GR230DⅢ For SaleXCMG Official Motor Grader GR230DⅢ For SaleXCMG Official Motor Grader GR230DⅢ For Sale
